The ARC Concept Series 3" Flush Mount Cube LED Pod Lights with Driving Beam represent the cutting edge of automotive lighting technology in a sleek, flush-mount design. These compact, powerful lights are engineered to significantly enhance long-range visibility while meeting strict SAE standards for street-legal use.
Key Features:
- Precision Optics: Equipped with automotive-grade Osram OSLON LEDs and TIR projector lenses
- Driving Beam Pattern: Focused light for long-range visibility
- Street Legal: SAE J581 certified for use on any roadway in the USA
- Flush Mount Design: Sleek 3.5" x 3.5" x 2.6" chassis for seamless integration
- High Performance: 1,500 lumens per light for superior illumination
- Durable Construction: IP67 rated for protection against dust and water
- Versatile Power: Compatible with 10-36V DC systems
Why Choose ARC Concept Series Flush Mount Driving Lights:
- SAE Certified: Fully compliant for legal use on all US roadways
- Improved Long-Range Visibility: Ideal for high-speed driving and nighttime safety
- Versatile Application: Perfect for adding auxiliary lighting with a clean, integrated look
- Premium Components: Osram OSLON LEDs ensure long-lasting, high-quality illumination
- Durable Design: Built to withstand harsh environments with IP67 rating
- Extended Warranty: Backed by a 3-year warranty for peace of mind
Package Includes:
- 2 x Flush Mount LED Pods
- 2 x Foam Bracket Pads
- Mounting Hardware
- (Note: Wiring Harness Sold Separately - SKU#:84002)
Driving Beam Advantage:
The street-legal driving beam is designed to produce a focused, pencil-shaped white light that reaches far beyond high-beam headlights. This configuration increases long-range visibility at high speeds, providing added safety when driving on roads at night. The DOT and SAE approved driving beam offers a slightly wider spread than a typical high beam, with vertical spread restrictions to minimize glare for oncoming traffic.
Installation:
- Determine suitable mounting locations for the LED Pods, wiring harness, and switch.
- Connect the wires according to the provided diagram, ensuring proper insulation at all connections.
- Connect positive and negative wires correctly, then test the lights using the switch.
- Adjust the lights to the desired angle and secure by tightening all mounting screws.
Specifications:
- Light Output: 1,500 Lumens (Per Light)
- LEDs: Osram (Oslon)
- Power: 20W @ 13.6V DC
- Current: 1.5A @ 13.6V DC
- Voltage: 10 - 36V DC
- IP Rating: IP67

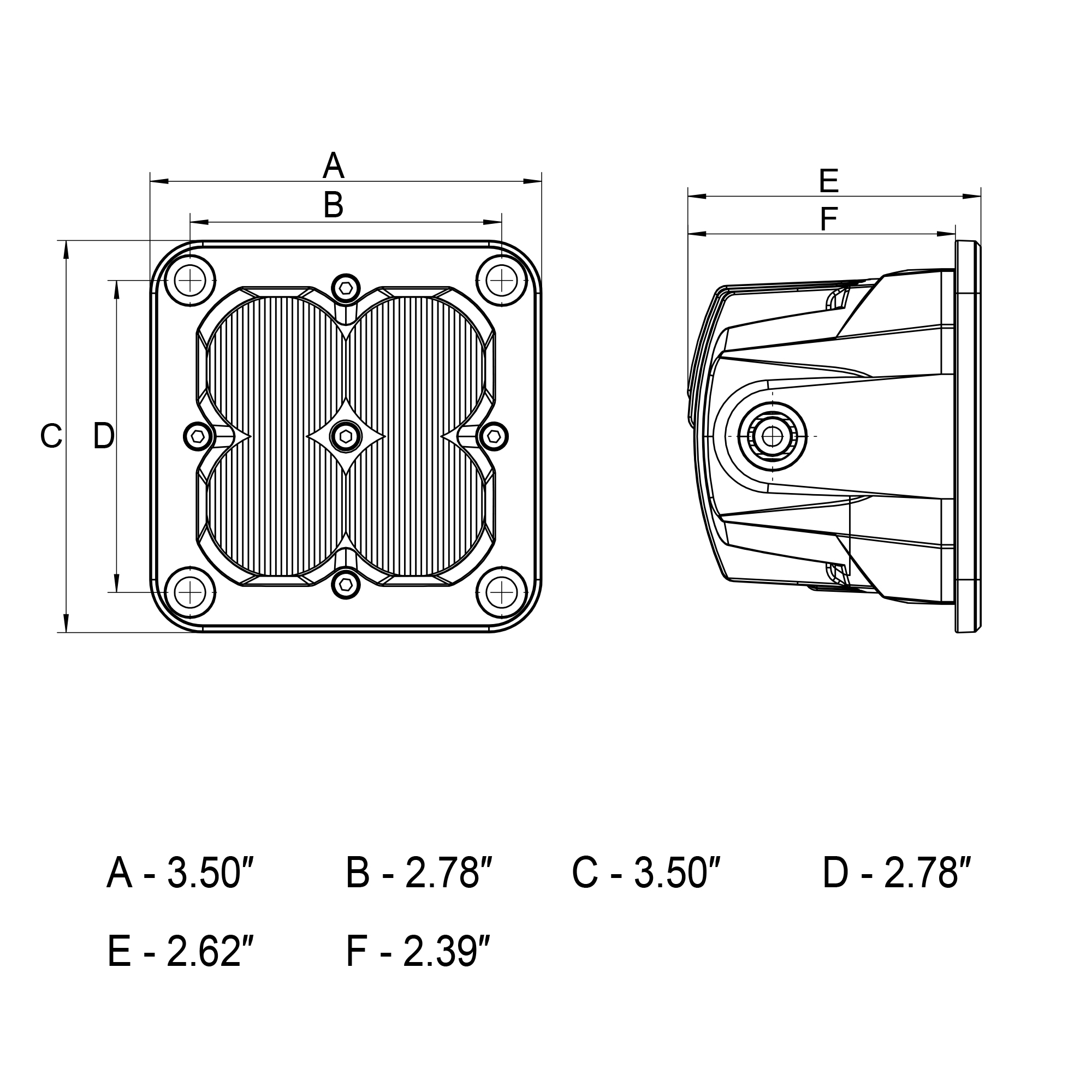

- Dimensions: 3.5" x 3.5" x 2.6"
- Beam Pattern: Driving Beam
- Compliance: SAE J581
- Warranty: 3 years
Upgrade your vehicle's lighting system with the ARC Concept Series 3" Flush Mount Cube LED Pod Lights with Driving Beam. Whether you're enhancing your high-speed night driving capabilities, improving safety on dark roads, or seeking a superior long-range lighting solution with a sleek, integrated look, these compact powerhouses deliver exceptional performance. Experience the perfect blend of form and function with ARC's cutting-edge LED technology, and illuminate the path ahead with confidence in any driving condition.
