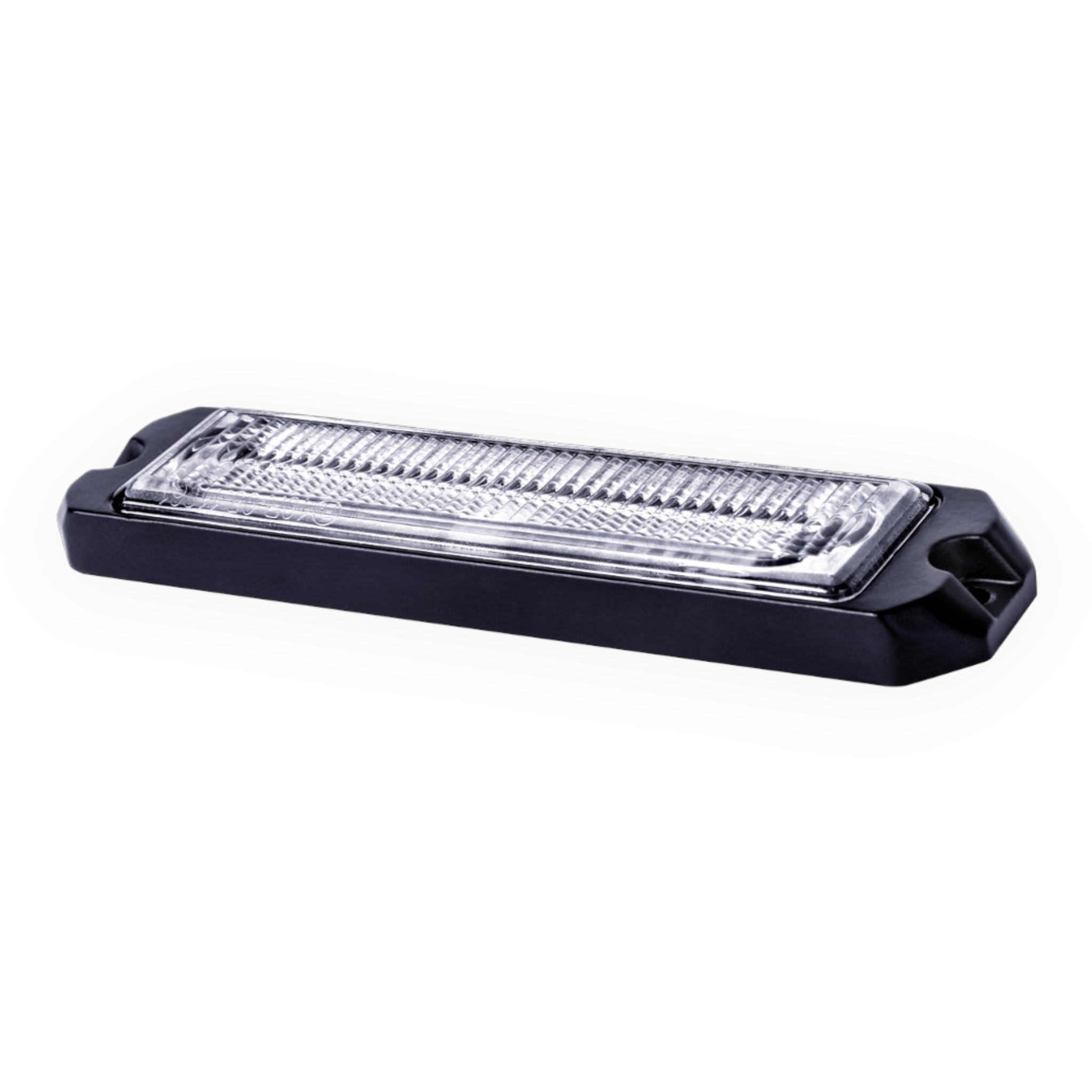

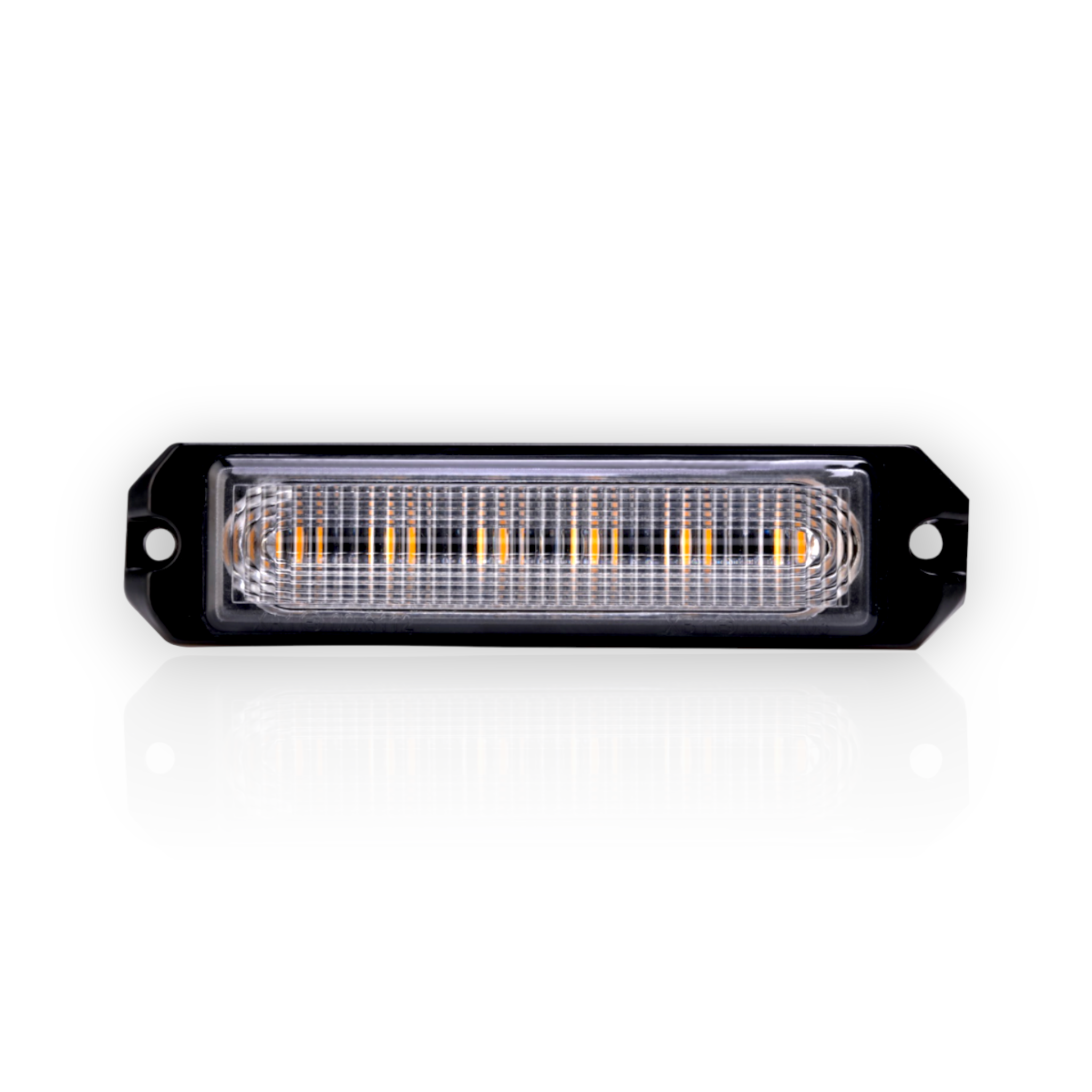

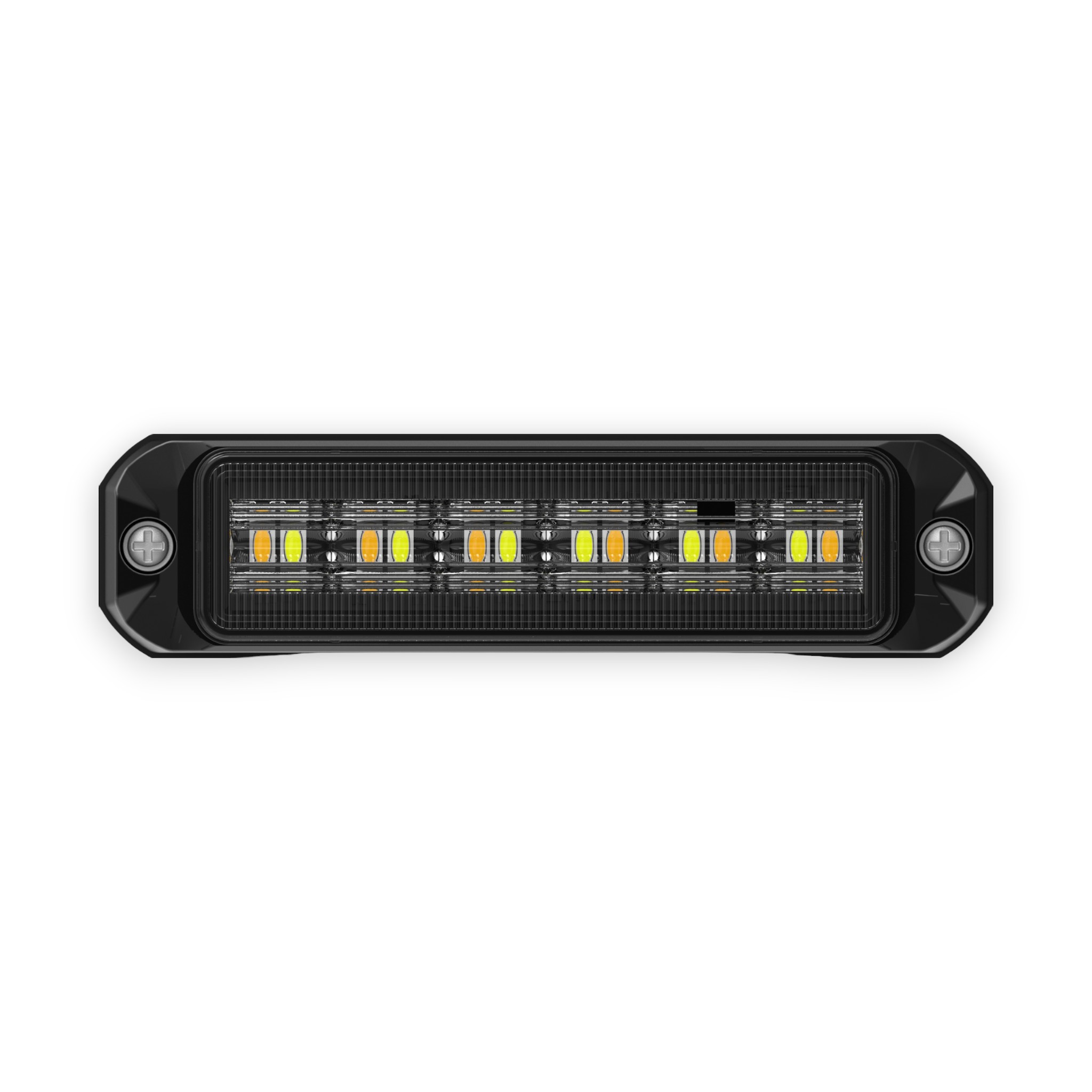

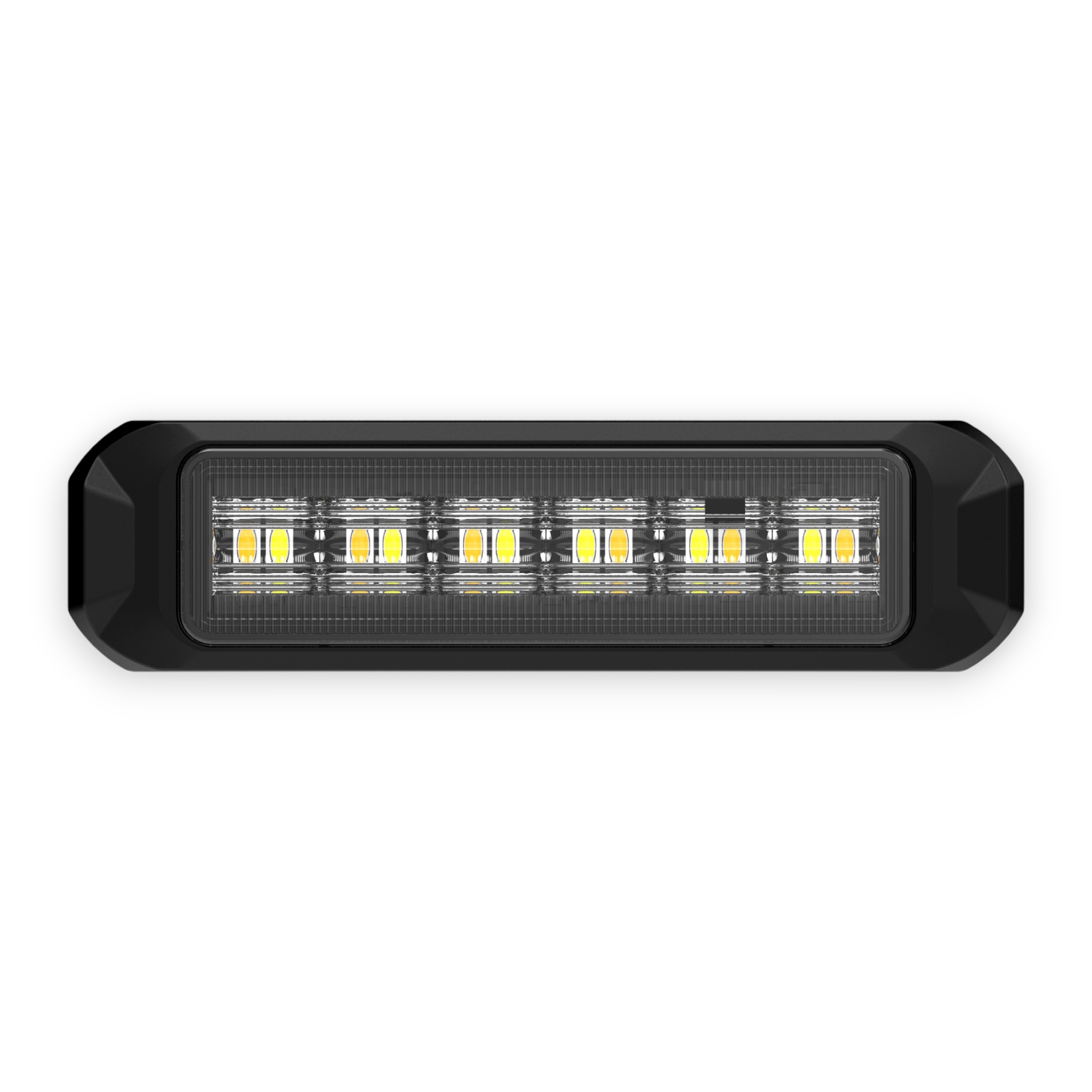

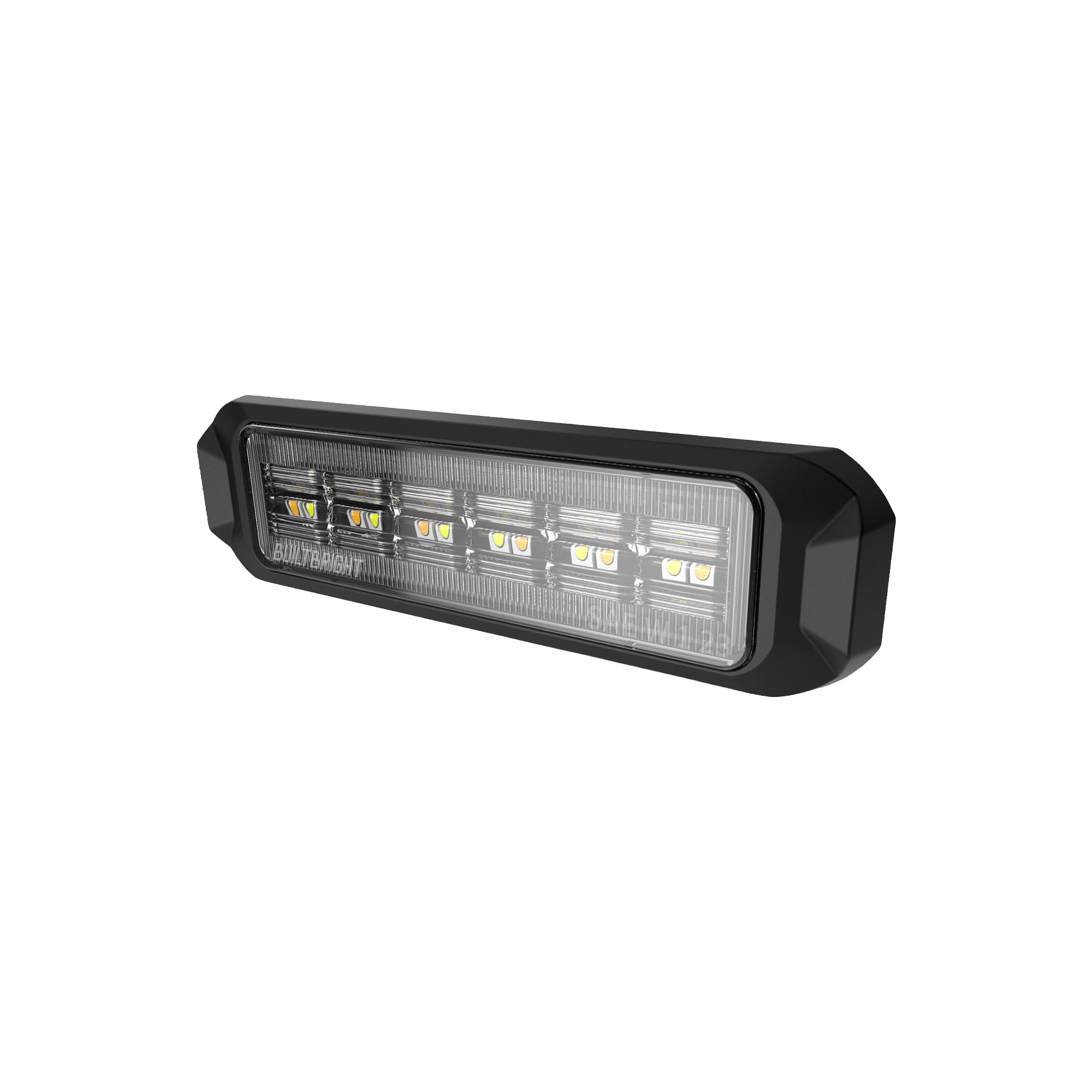

The Builtbright Work Bar Strobe 4 Slim is a cutting-edge, ultra-slim warning device designed to provide exceptional visibility for a wide range of vehicles. This unit's ultra-low profile design offers unparalleled flexibility, allowing it to be mounted virtually anywhere on a vehicle’s exterior surface or grille. Engineered to withstand the harshest conditions, the Work Bar Strobe 4 Slim is a testament to Builtbright's commitment to quality and functionality. It is equipped with 12 high-intensity LEDs, housed behind a unique optical lens, delivering powerful and focused illumination. The dual-memory functionality is a standout feature, enabling the light to flash in different colors or maintain a steady burn, customizable to specific needs or preferences.
Designed and rigorously tested to meet the demanding standards of emergency services and amber safety applications, this light bar boasts an ultra-strong UV stabilized polycarbonate lens, ensuring durability and longevity. Its compliance with IP69K, SAE Class 1, and EMC R10 standards further underscores its suitability for challenging environments. The Builtbright Work Bar Strobe 4 Slim is not just a lighting solution; it's a reliable partner in ensuring safety and visibility in critical situations. Backed by a 5-year warranty, this product is a solid investment for those who value dependability and performance.
Key Features:
- Dual Voltage Compatibility: Operates on both 12 and 24V DC systems, making it versatile for different vehicle types.
- High Compliance Standards: Meets SAE J595 Class 1 and EMC CISPRR 25 requirements, ensuring top-notch quality and safety.
- High-Intensity LEDs: 12 LEDs provide powerful illumination for maximum visibility.
- User Programmable Modes: Offers 2 programmable modes for customized lighting.
- Dual Color Functionality: Features both white and amber colors with 63 flash patterns, including Cruise and Flood Mode.
- Synchronized Flashing Capability: Enables multi-unit synchronization for simultaneous or alternating flashing, enhancing visibility and impact.
- Ultra Slim Design: Its sleek profile allows for versatile mounting options on any part of the vehicle.
- Weatherproof and Durable: Rated IP69K for superior weather resistance, ensuring reliable performance in harsh conditions.
Kit Components:
- LED Light Bar: The core component, featuring 12 high-intensity LEDs for powerful lighting.
- Foam Pad: Provides cushioning and stability for the light bar, ensuring secure mounting.
- 3M VHB Tape: High-quality adhesive tape for easy and reliable installation.

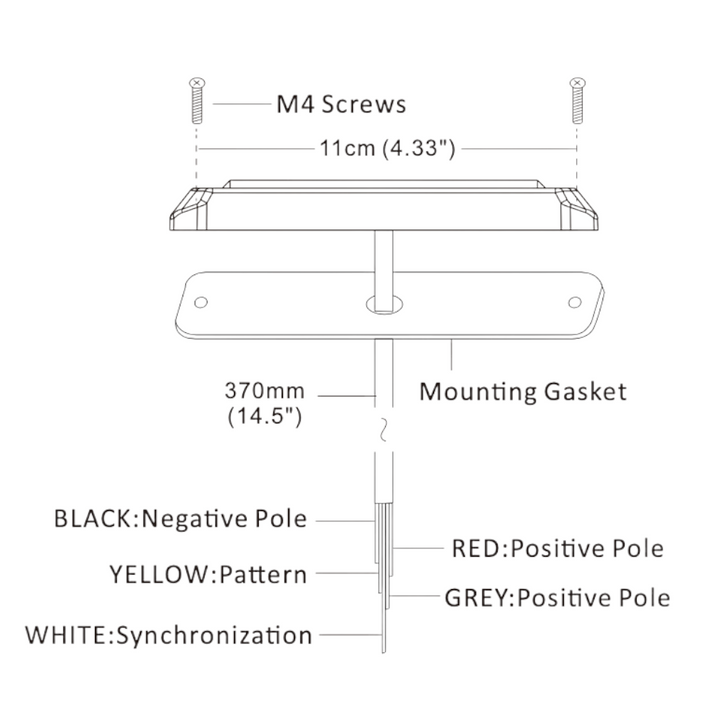

- Mounting Hardware: Includes all necessary components for a hassle-free installation process.
Durability and Compliance:
- Robust Construction: Made with a cast aluminum housing and a UV stabilized polycarbonate lens for maximum durability.
- High Compliance Standards: Meets rigorous industry standards including SAE J595 Class 1, EMC CISPRR 25, and IP69K, suitable for various professional applications.
- Extreme Temperature Resistance: Operates effectively in a wide temperature range from -40°F to +149°F.
Customization and Versatility:
- Dual Color Options: Offers versatility with both amber and white color options.
- Multiple Flash Patterns: 63 patterns provide a range of visual alerts for different situations.
- Programmable Modes: Two user-programmable modes allow customization according to specific needs or preferences.
Specifications:
- Compliance: SAE J595 Class 1, EMC CISPRR 25
- LED Count: 12
- Voltage Range: 12-24V DC
- Flash Patterns: 63
- Memory Modes: 2
- Current & Power: Average Current 0.25A, Max Current 0.6A, Average Power 3.5W, Max Power 8W
- LED Colors: Dual Color (Amber & White)
- Operating Temperature: -40°F to +149°F
- Weatherproof Rating: IP69K
- Dimensions: 1.22” H x 4.7" W x 0.55" D
- Connectors: DT Pigtail
- Material Types: Lens - UV stabilized polycarbonate; Body - Cast Aluminum, Powder Coated Black; Hardware - 304 Stainless Steel
- Warranty: 5 Years
The Builtbright Work Bar Strobe 4 Slim is an excellent choice for those seeking a high-performance, durable, and versatile lighting solution. Its advanced features, robust construction, and ease of use make it a practical and efficient addition to any vehicle requiring high visibility. With its comprehensive warranty and compliance with industry standards, this light bar stands as a reliable, long-term investment in vehicle safety and functionality.
